Truechip's DDR4 Verification IP provides an effective & efficient way to verify the components interfacing with DDR4 interface of an ASIC/FPGA or SoC.
Truechip's DDR4 VIP is fully compliant with Standard DDR4 Version JESD79‐4 specification from JEDEC. This VIP is a light weight VIP with easy plug‐and‐play interface so that there is no hit on the design time and the simulation time.
- Compliant to JEDEC DDR4 SDRAM Specification version JESD79‐4.
- Supports connection to any DDR4 Memory Controller IP
- communicating with a JESD79‐4 compliant DDR4 Memory Model.
- Supports configurable SDRAM addressing of different sizes(x4,x8 and x16).
- Available in all memory sizes from 2 Gb to 16 Gb.
- 3DS Memory Model also available.
- Supports CRC computation/validation across the data bus.
- Supports Data Bus Inversion(DBI).
- Supports Data Masking(DM).
- Supports CAL mode(CS_n to command address latency).
- Support for all speed‐grades/speed‐bins.
- Supports configurable timing parameters and rank associations.
- Supports capturing all the valid DDR4 commands including Activate, Read,Write, Precharge.
- Supports CA parity for command/address bus.
- Supports Power‐up Reset and initialization sequences.
- Supports Precharge Power‐Down, Active Power‐Down, Self‐Refresh operation.
- Reports various timing errors, which can be used to check any timing violations.
- Provides full control to the user to enable / disable various types of messages.
- Supports full timing models or bus functional models.
- Support for Multiple Ranks architecture.
- Supports advanced SystemVerilog features like constrained random testing.
- Supports dynamically configurable modes.
- Strong Protocol Monitor with real time exhaustive programmable checks.
- Supports Dynamic as well as Static Error Injection scenarios.
- On the fly protocol checking using protocol check functions, static and dynamic assertion.
- Built in Coverage analysis.
- Provides a comprehensive user API (callbacks) in Monitor, Controller and Memory Model BFMs.
- Graphical analyser to show transactions for easy debugging.
- Available in native SystemVerilog (UVM/OVM/VMM) and Verilog
- Unique development methodology to ensure highest levels of quality
- Availability of various Regression Test Suites
- 24X5 customer support
- Unique and customizable licensing models
- Exhaustive set of assertions and cover points with connectivity example for all the components
- Consistency of interface, installation, operation and documentation across all our VIPs
- Provide complete solution and easy integration in IP and SoC environment
- DDR4-SDRAM Model
- DDR4 Monitor & Scoreboard
- DDR4 Memory Controller BFM/Agent
- Test-Bench Configurations
- Test Suite (Available in Source code)
- Basic Protocol Tests
- Directed & Random Tests
- Assertions & Cover Point Tests
- Integration Guide, User Manual and Release Notes

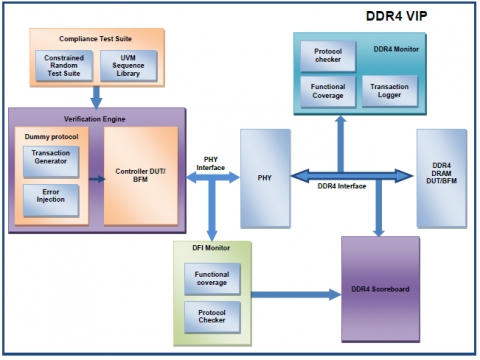

Block Diagram of the DDR4 Verification IP Verification IP
