Truechip's C‐PHY Verification IP provides an effective & efficient way to verify the components interfacing with C‐PHY interface of an IP and SOC.
Truechip's C‐PHY VIP is fully compliant with Compliant to MIPI C‐PHY Specification version 1.1.The VIP is light weight with easy plug‐and‐ play interface so that there is no hit on the design cycle time.
- Compliant to MIPI C‐PHY Specification version 1.1 with PPI
- Supports all configuration of a data lane module as specified in Figure 6 of C‐PHY specification version 1.1 for
- Data Lane Module (MFAA & SFAA, MFAE &SFAE,
- MFEA & SFEA, MFAN & SFAN, MFEE & SFEE,
- MFEN &SFEN).
- Supports ULPS, Triggers and LPDT in low power escape
- Bi directional Data lane Turnaround is supported for escape
- Configurable number of Data Lanes.
- Supports High‐Speed mode and Low Power Escape and
- Control modes.
- Supports continuous and non‐continuous clock behaviour.
- Supports 16:7 Mapper and 7:16 Demapper.
- Supports symbol encoding and decoding.
- Supports dynamically configurable modes.
- Strong Protocol Monitor with real time exhaustive programmable checks.
- Supports Dynamic as well as Static Error Injection scenarios.
- On the fly protocol checking using protocol check functions,
- static and dynamic assertion.
- Built in Coverage analysis.
- Provides a comprehensive user API (callbacks) in Master and
- Graphical analyser to show transactions for easy debugging.
- Available in native SystemVerilog (UVM/OVM/VMM) and Verilog
- Unique development methodology to ensure highest levels of quality
- Availability of various Regression Test Suites
- 24X5 customer support
- Unique and customizable licensing models
- Exhaustive set of assertions and cover points with connectivity example for all the components
- Consistency of interface, installation, operation and documentation across all our VIPs
- Provide complete solution and easy integration in IP and SoC environment.
- MIPI C‐PHY Master/Slave BFM/Agent
- MIPI C‐PHY Monitor
- MIPI C‐PHY Scoreboard
- Testbench Configurations
- Test Suite (Available in Source code) ‐
- Basic and Directed Protocol Tests
- Random Tests
- Error Scenario Tests
- Assertions & Coverage Tests
- Integration Guide, User Manual and Release Notes

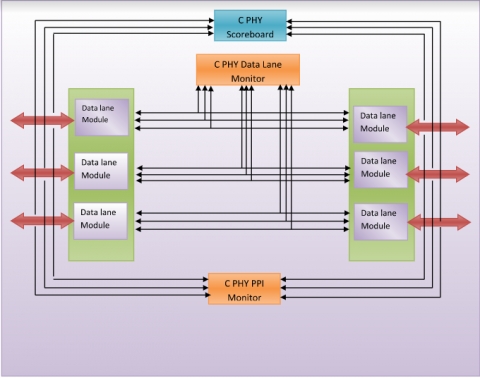

Block Diagram of the MIPI -PHY C-phyVerification IP Verification IP
