The sADC-H1-LR.02 is a mixed (analog and digital) Virtual Component containing four mono ADCs, and additional functions offering an ideal mixed signal front-end for low power and high quality audio applications.
- Patented PLL-less solution: generate all the sampling frequency through a single master clock frequency with no need of audio PLL
- Embedded low noise voltage regulator for best resilience to power supply noise
- Optimal sound recording performance thanks to high dynamic range and Automatic Gain control feature

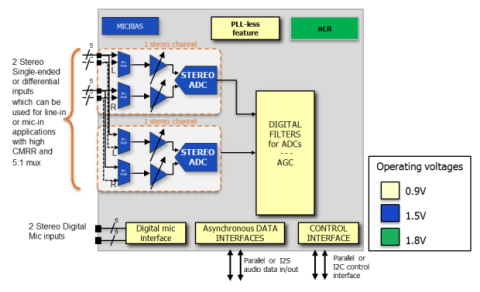

Block Diagram of the 24-bit four channel audio ADC with 95 dB Dynamic Range, compatible with Automotive requirements
