64-Bit AI Platform for AI-enabled Edge SoCs

Wave Computing’s customizable TritonAI™ 64 platform combines a triad of powerful technologies in a single, licensable solution that enables efficient artificial intelligence (AI) at the edge. The scalable platform offers a flexible and efficient way for system on chip (SoC) developers to incorporate AI inferencing capabilities into their edge computing designs.

The TritonAI 64 platform helps organizations future-proof their environments from continual change by delivering a flexible design using 8-to-32-bit integer-based, for high-performance AI inferencing at the edge today. The platform includes three scalable technologies developers can easily configure to address a broad range of AI use cases and computational requirements:
MIPS® 64-bit SIMD engine
WaveFlow™ dataflow engine
WaveTensor™ processing engine

The TritonAI 64 platform delivers varying performance levels by incorporating additional compute elements from each of the three technologies in a modular and linear fashion. Designers can configure each of the three modules as needed to address the performance needs for varying AI use cases.

The platform will automatically update with each software iteration to ensure customers’ environments keep pace with rapidly evolving AI requirements.

Features

Mature IDE & tools
Integrated driver layer for technology mapping
Linux support
Abstract AI framework via the Wave Runtime (WaveRT) API
Optimized AI libraries for:

CPU/SIMD/WaveFlow/WaveTensor
TensorFlow-Lite Build support

MIPS 64-BIT SIMD ENGINE:

MIPS64r6 instruction set architecture
128-bit SIMD/FPU for INT/SP/DP ops
Virtualization extensions
Superscalar 9-stage pipeline w/SMT
Caches (32KB-64KB), DSPRAM (0-64KB)
Advanced branch prediction and MMU

Multi-Processor Cluster:

1-6 cores
Integrated L2 cache (0-8MB, opt ECC)
Power management (F/V gating/CPU)
Interrupt control with virtualization
256b native AXI4 or ACE interface

WAVEFLOW DATAFLOW ENGINE:

Configurable IMEM and DMEM Sizes
Overlap of communication & computation
Compatible datatypes with WaveTensor
Integer (Int8, Int16, Int32)
Wide range of scalable solutions (2-1K tiles)
Future-proof for all AI algorithms
Flexible multi-dimensional tiling
Supports signal and vision processing

WAVETENSOR PROCESSING ENGINE:

Configurable MACs, accumulation & array size
4x4 (64 MAC) and 8x8 (512 MAC) base tiles
Up to 32 tiles per slice & up to 32 slices per array
Slices up to overlap of communication & computation
Supports int8 for inferencing

Application Programming Kit (APK):

Allows developers to parse and execute appropriate AI tasks using WaveFlow and WaveTensor acceleration engines. These engines are controlled in a heterogeneous programming environment managed by unifying WaveRT API platform. This software-centric approach abstracts the AI use case, framework and algorithms from the dedicated silicon executing the code, allowing developers to exploit algorithmic parallels for faster performance.

Benefits

Flexible support for a broad range of AI use cases
Efficient execution of current AI CNN algorithms
Easily configurable allowing customers to scale performance to meet changing AI algorithmic needs and use cases
Comprehensive, future-proof, licensable IP platform
Support for 8- to 32-bit integer-based inferencing

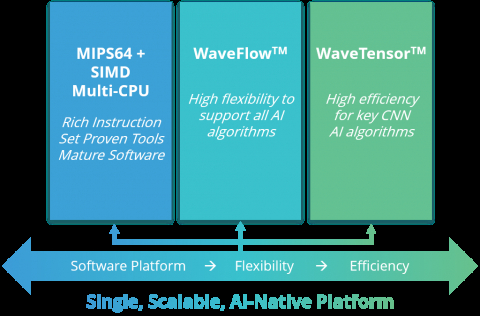

Block Diagram of the 64-Bit AI Platform for AI-enabled Edge SoCs

64-Bit AI Platform for AI-enabled Edge SoCs Block Diagam
