The W65C02i1M08SC Microprocessor Datasheet is for MyMENSCH™ Rev-A.
The central processor unit (CPU) is the W65C02RTL microprocessor. The W65C02i1M08SC is described with the Verilog
HDL for use with MAX10 FPGAs.
WDC's RTL Softcore version provides a cycle-accurate option providing for implementation onto any foundry process.
Development tools are available for the creation of 65xx application code.
- -8-bit data bus
- -Intel PSG MAX10M08SC FPGA with 8,000 Logic Elements Available
- -Operating Voltage – 3.3V
- -W65C02RTL MPU @ 14.7456 MHz with external memory bus for memory and module expansion
- -W65C22RTL VIA (x2)
- -W65C51RTL ACIA (x3) – ACIA XTLI Operation Speed – 1.8432 MHz
- -W65CGPIO 5 register and 2 register
- -De-bounced Keypad GPIO_A
- -W65CHBM Hardware Breakpoint Module
- -SPI Master
- -I2C Master
- -WDC 2K byte for 2048 bytes of CFM MyMENSCH™ Monitor for boot loading and debugging code
- -30K bytes for a total of 30,720 bytes for User code SRAM boot loaded from USB or copied from UFM
- -12K bytes for a total of 12,288 bytes for data SRAM
- -JTAG available on MyMENSCH™ Rev-A on J4
- -16×16 Hardware multiplier (x2 – Signed and Unsigned)
- -32K bytes for a total of 32,768 bytes of User FLASH Memory (UFM)
- -64-bit Unique Chip ID/serial number programmed in the Intel MAX10 factory
- -18,446,744,073,709,551,616 Unique IDs
- -Preprogrammed FPGA Available Now
- -Flexible enhancement options
- Preprogrammed FPGA Devices
- Code Examples
- Datasheet Documentation
- Industrial Controls
- General Electronics

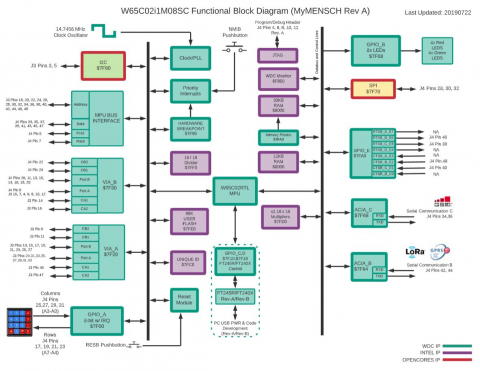

Block Diagram of the 8-Bit Microcontroller Based on the W65C02
