AHB-Lite to AHB-Lite Asynchronous Bridge

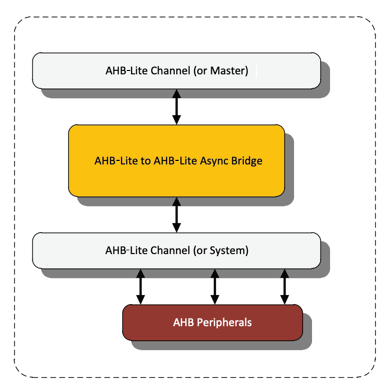

The AHB-Lite to AHB-Lite Asynchronous Bridge translates an AHB-Lite bus transaction (read or write) on one clock domain to an AHB-Lite bus transaction on a second (asynchronous) clock domain. This allows two completely independent AHB-Lite systems to communicate and share data. The bridge is implemented as two state machines - one on the initial or “A” domain and another on the secondary or “B” domain, and several synchronizers. The AHB-Lite to AHB-Lite Asynchronous Bridge acts as an AHB-Lite Slave on the “A” domain, and an AHB-Lite Master on the “B” domain.
