CSI2 RX; Camera Serial Interface, MIPI Compliant
Features
- Supports up to 4-Data lanes
- The Data lanes can be programmed to operate at 1 or 2 or 3 or 4 lanes
- Each Data lane supports up to 1.5Gbps at High Speed mode and up to 20-MHz at Low power mode
- Supports 4-virtual channel
- Supports Camera control Interface for controlling the CSI2 Transmitter
- Two wire, Bi directional and half duplex interface (SCLK, SDA), Supports 400KHz and 7-bit Slave addressing
- Supports ECC -single bit Error correction and double bit error detection for packet headers
- Supports CRC error checking for the payload
- Supports the following error handling mechanism
- D-PHY Layer Errors
- ECC and CRC Errors
- Frame Sync Errors
- Invalid Data format
- Supports High speed data, Ultra Low power (Escape mode) control and Low power data modes of operations
Deliverables
- Source Code – Verilog HDL
- Verification Environment
- Synthesis Scripts
- Timing Constraints
- User Manual

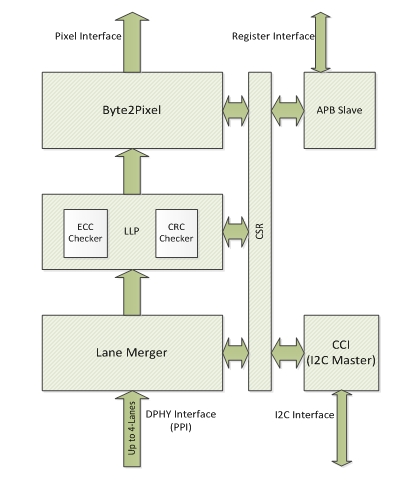

Block Diagram of the CSI2 RX; Camera Serial Interface, MIPI Compliant
