Display Port v1.4 Rx PHY & Controller IP, Silicon Proven in TSMC 40LP
This Display Port v1.4 Rx PHY IP Core supports Channel capacity, offering programmable analog characteristics like CDR Bandwidth, Equalizer Strength, Terminator Resistor, and BGR Voltage, up to 5.4 Gbps per channel (HBR2). It also includes testability options such as PLL alone test and analog signal monitor, ensuring comprehensive functionality for signal processing and testing in digital display systems.
View Display Port v1.4 Rx PHY & Controller IP, Silicon Proven in TSMC 40LP full description to...
- see the entire Display Port v1.4 Rx PHY & Controller IP, Silicon Proven in TSMC 40LP datasheet
- get in contact with Display Port v1.4 Rx PHY & Controller IP, Silicon Proven in TSMC 40LP Supplier

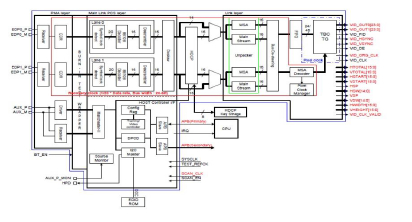

Block Diagram of the Display Port v1.4 Rx PHY & Controller IP, Silicon Proven in TSMC 40LP
