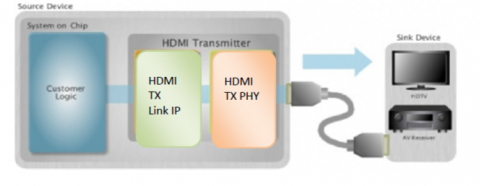

IP core that completely conforms with HDMI 1.4 requirements for physical layer HDMI transmitters For consumer electronics like DVD player/recorders and camcorders, the HDMI transmitter PHY offers an easyto-implement system LSI solution that supports pixel clocks between 25MHz and 250MHz. The following Fab/Nodes have all undergone Silicon Proving: (TSMC, UMC, SMIC, GF, Samsung, ST). It will be straightforward to integrate the HDMI Transmitter Link IP Core into the SoC of consumer goods because it supports HDMI 1.4b and runs at 2.25 Gbps, 16-bit deep colour, and 3D compatibility (HD-TV, AV receiver... etc.). When used in conjunction with the HDMI Transmitter PHY IP, the HDMI Rx IP will perform to the very best of its ability in terms of performance, value, and efficiency. Various HDMI Tx IP configurations are available.
