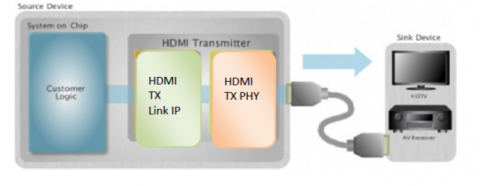

Physical layer IP core for HDMI transmitters that adheres to HDMI 1.4 requirements in full For consumer electronics like DVD player/recorders and camcorders, the HDMI transmitter PHY offers an easyto-implement system LSI implementation and supports pixel clocks between 25MHz and 250MHz. The following Fab/Nodes have all been Silicon Proven: (TSMC, UMC, SMIC, GF, Samsung, ST). The 2.25 Gbps, 16-bit deep colour, and 3D compatibility HDMI Transmitter Link IP Core, which supports HDMI 1.4b, will be easily integrated into the SoC of consumer goods (HD-TV, AV receiver... etc.). The HDMI Transmitter PHY IP must be connected with the HDMI Rx IP for the HDMI Rx IP to operate at its peak efficiency, performance, and characteristics. To meet particular customer demands, HDMI Tx IP can be customized.
