HDMI ver1.3 Transmitter IP
HDMI Transmitter Link IP Core supporting the standard of HDMI 1.3a which will be quickly implemented into SoC of consumers' product (HD-TV, AV receiver... etc.). The best performance, efficiency and characteristic of HDMI Rx IP can be realized when it is connected to HDMI Transmitter PHY IP.
HDMI Tx IP can be customized to meet customer specific requirement.
HDMI Tx IP can be customized to meet customer specific requirement.
Features
- HDMI version 1.3a, HDCP revision 1.2 and DVI version 1.0 compliant transmitter
- Supports DTV from 480i to 1080i/p HD resolution, and PC from VGA to UXGA
- Programmable 2-way color space converter
- Compliant with EIA/CEA-861D
- Deep color supported up to 12bit per pixel.
- xvYCC Enhanced Colorimetry
- Gamut Metadata transmission
- Supports RGB, YCbCr digital video input format includes ITU.656
- 36bit RGB/YCbCr 4:4:4
- 16/20/24bit YCbCr 4:2:2
- 8/10/12bit YCbCr 4:2:2 (ITU.601 and 656)
- Supports standard SPDIF for stereo or compressed audio up to 192KHz
- Support PCM, Dolby digital, DTS digital audio transmission through 4bits I2S up to 8 channel
- IEC60958 or IEC61937 compatible
- 1bit audio format(Super Audio CD)
- High-bitrate compressed audio formats
- Master I2C interface for DDC connection
- Configuration registers programmable via parallel interface
- Wide range channel speed up to 2.2Gbps
- Programmable PLL characteristics, channel delay, and transmitter pre-emphasis rate
Benefits
- Customisable HDMI Tx IP
- Quick Implementation into the SoC
Deliverables
- Configurable RTL Code
- HDL based test bench and behavioral models
- Test cases
- Protocol checkers, bus watchers and performance monitors
- Configurable synthesis shell
- Documentation
- Design Guide
- Verification Guide
- Synthesis Guide

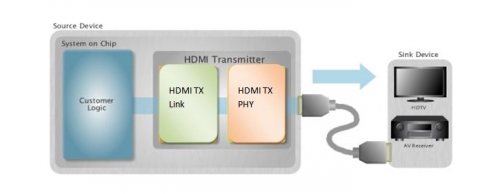

Block Diagram of the HDMI ver1.3 Transmitter IP IP Core
