MIPI D-PHY DSI TX (Transmitter) in Samsung 28FDSOI
The IP can be configured as a MIPI Master optimized for display (DSI) applications.
The High-Speed signals have a low voltage swing, while Low-Power signals have large swing. High-Speed functions are used for High-Speed data traffic while low power functions are mostly used for control.
View MIPI D-PHY DSI TX (Transmitter) in Samsung 28FDSOI full description to...
- see the entire MIPI D-PHY DSI TX (Transmitter) in Samsung 28FDSOI datasheet
- get in contact with MIPI D-PHY DSI TX (Transmitter) in Samsung 28FDSOI Supplier

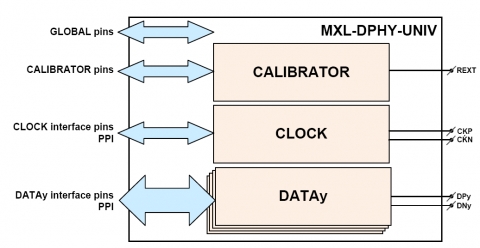

Block Diagram of the MIPI D-PHY DSI TX (Transmitter) in Samsung 28FDSOI
