NFC (PICC, UHF, Controller) IP
NFC PICC Front-End IP (ISO/IEC 14443-A/B, ISO/IEC 15693, ISO/IEC 18092 Compliant):
ISO/IEC 14443-A/B compliant
Data rates from 106kbps to 848kbps
ISO/IEC 15693 compliant:
PICC to PCD: one and two-subcarrier modes
PCD to PICC: 1 of 4, 1 of 256
ASK modulation from 10% to 100%
Fully passive (power harvesting by reader chip)

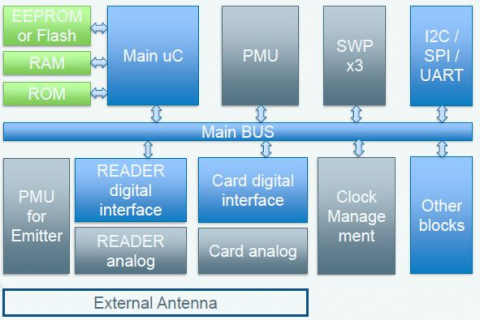

NFC Controller IP (Integrated Contactless Reader unit, Card Unit, PMU, Clock Management):
Contactless reader unit
Includes card detector
Contactless card unit
Includes all card protocols and P2P reception
UHF Front-End IP (EPCGlobal Class 1 Gen2 / ISO18000-6C Compliant) is a stand-alone, fully passive solution with best-in-class sensitivity, ultra low power consumption and ultra low size. The design is constructed exclusively from basic components allowing for rapid transfer between Fabs and Nodes.
Energy Harvesting Front-End IP (200MHz, 600MHz, 800MHz, 2.4GHz)
Active Blocker Chip/Card (Blocks all NFC communication within 4 cm)
View NFC (PICC, UHF, Controller) IP full description to...
- see the entire NFC (PICC, UHF, Controller) IP datasheet
- get in contact with NFC (PICC, UHF, Controller) IP Supplier
