ONFI 4.1 PHY IP (Silicon Proven in TSMC 12FFC)

ONFI PHY block is used to either transmit signal and data to NAND Flash interface or receive the data from NAND Flash by Flash controller IP. MDLL sets the delay time for the control signal of PHY to access to the data in flash during the suitable period. Please refer to the following diagram for an overview of ONFI PHY

View ONFI 4.1 PHY IP (Silicon Proven in TSMC 12FFC) full description to...

see the entire ONFI 4.1 PHY IP (Silicon Proven in TSMC 12FFC) datasheet
get in contact with ONFI 4.1 PHY IP (Silicon Proven in TSMC 12FFC) Supplier

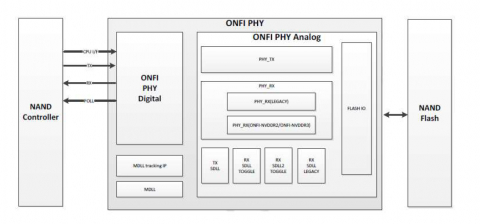

Block Diagram of the ONFI 4.1 PHY IP (Silicon Proven in TSMC 12FFC)

ONFI 4.1 PHY IP (Silicon Proven in TSMC 12FFC) Block Diagam
