An n-bit hash is a map from arbitrary length messages to n-bit hash values. An n-bit cryptographic hash is an n-bit hash which is one-way and collision resistant. Such functions are important cryptographic primitives used for such things as digital signatures and password protection. Current popular hashes produce hash values of length n = 128 (MD4 and MD5) and n = 160 (SHA-1), and therefore can provide no more than 64 or 80 bits of security, respectively, against collision attacks. Since the goal of the new Advanced Encryption Standard (AES) is to offer, at its three cryptovariable sizes, 128, 192, and 256 bits of security, there is a need for companion hash algorithms which provide similar levels of enhanced security. ntSHA256 IP Core implements SHA-256, or Secure Hash Algorithm-256 which is one of the latest hash functions standardized by the U.S. Federal Government. It is a 256-bit hash and is meant to provide 128 bits of security against collision attacks. The implementation is very low on latency, high speed with a simple interface for easy integration in SoC applications.
- Compliant to FIPS 180-2 specification of SHA-256.
- Internally implemented bit padding unit.
- Supports input message length multiple of 8-bit.
- Parametric hash values (h) of Chaining Variables.
- Parametric SHA256 constant values table (k).
- 66 processing cycles per 512-bit message block.
- Simple interface.
- Fully synchronous design.
- Silicon proven in ASIC and FPGA technologies for a variety of applications.
- Fully commented synthesizable VHDL or Verilog source code or FPGA netlist.
- VHDL or Verilog test benches and example configuration files.
- Comprehensive technical documentation.
- Technical support.
- Security applications and protocols (TLS, PGP, SSH, S/MIME, IPsec)
- Authentication of Debian GNU/Linux software packages
- DKIM message signing standard
- Transaction verification and proof-of-work calculation for several cryptocurrencies (Bitcoin)
- Password protection
- Digital signatures
- Message authentication
- Data integrity check

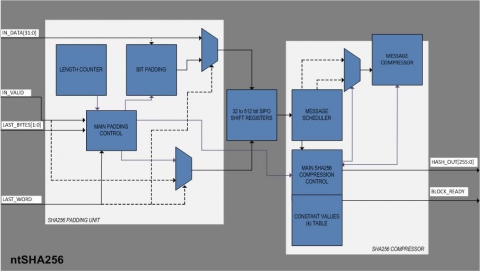

Block Diagram of the SHA 256-bit hash generator IP Core
